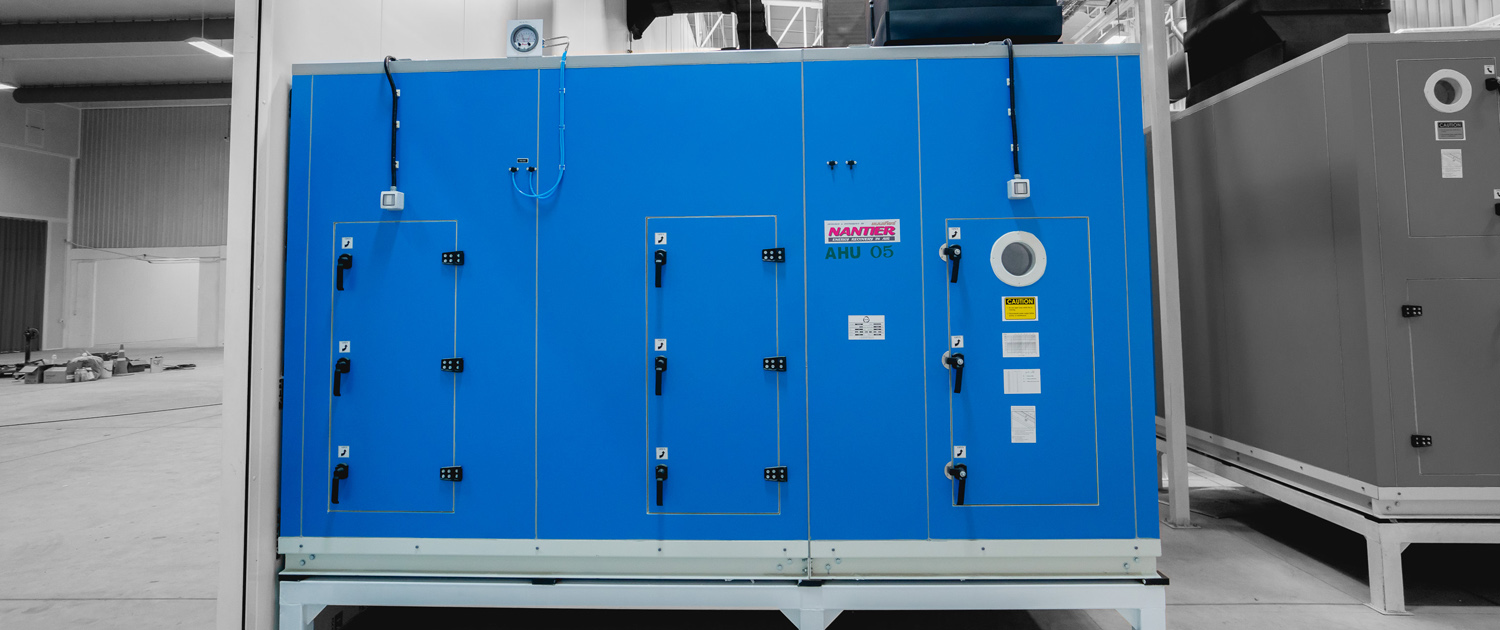

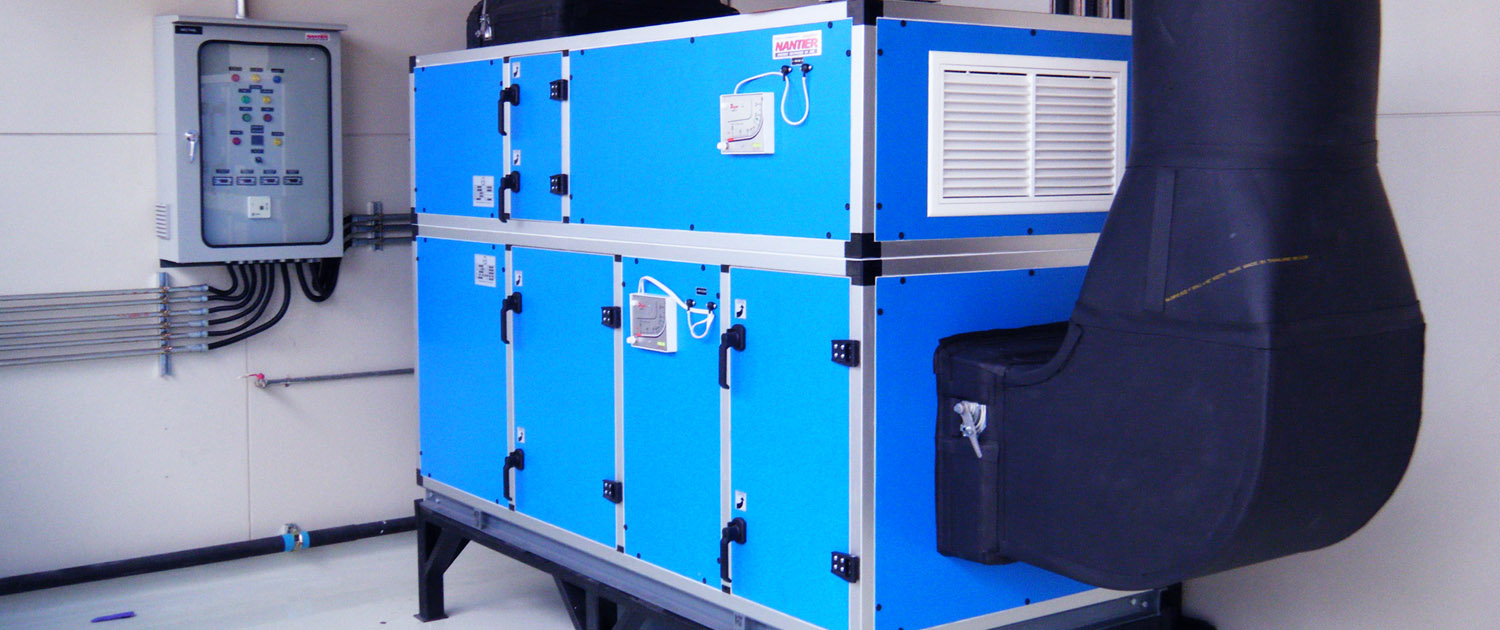

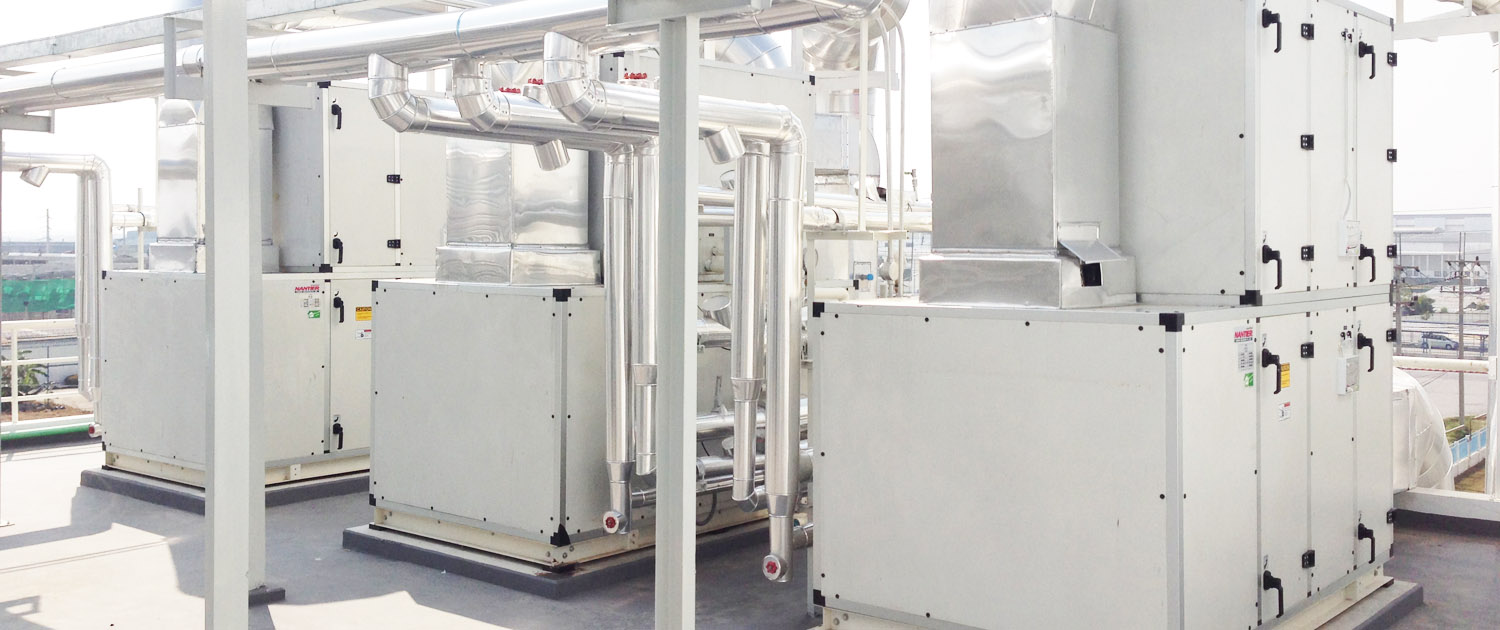

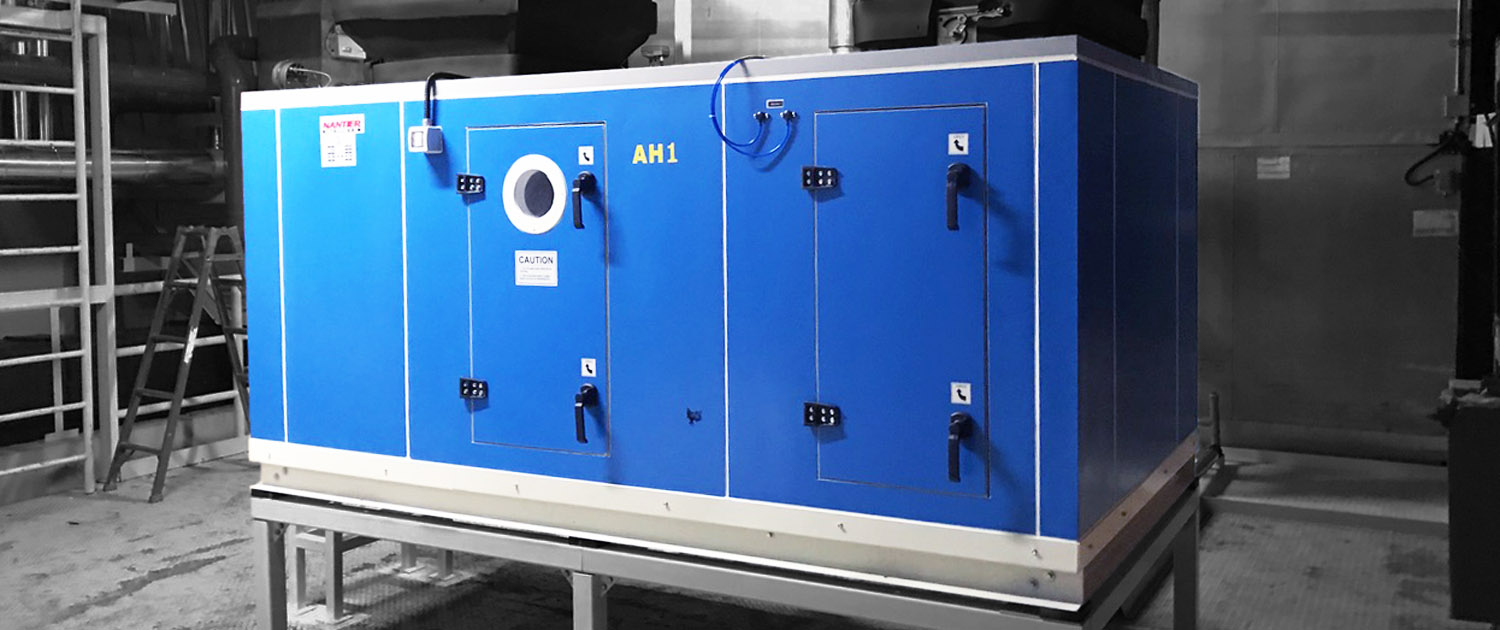

CUSTOMIZED AHU

•  Double skins 50mm. PU foam construction
•  Perfect selected cooling coils
•  Flexible dimensions, access doors, inlet & outlet direction

•  Suitable selected Fan
•  Vary options of filters
•  Aluminum opposed blade volume damper

STANDARD FEATURES

  • Double PU skins panel housing
  • Aluminum Opposed Blade Volume Damper
  • Chilled water cooling coil (two sections design)
  • Direct expansion cooling coil
  • Hot water coil or electric heater
  • Copper Coil Aluminum fins
  • Stainless steel drain pan
  • Built-in Pre filter
  • Easy access for servicing Compact sizing design (Vertical/Horizontal)
  • Start from 500 CFM to 14,000 CFM or more

OPTIONAL FEATURES

  • Stainless steel double skin panel
  • Coated protective fins – Cooling coil
  • Copper fins – Cooling coil
  • Aluminum Plate Heat Exchanger
  • Modular design

CONTROLLER FEATURES

  • Indoor or outdoor (optional) panel cabinet
  • VSD control
  • PLC control (optional)
  • Inlet and outlet temperature & relative humidity sensors (optional)

HOW IT WORKS

Customized AHU will be designed the followings in order to fit your requirement of room temperature and relative humidity environment controls.

  • Suitable cooling coil (two sections cooling coil design)
  • Suitable hot water coil or heater
  • Matched Fan (Flow & Head selection)
  • Modular design to fit with limited space

Product tips
Two sections cooling coil can keep humidity low and constant with lowest energy consumption.
